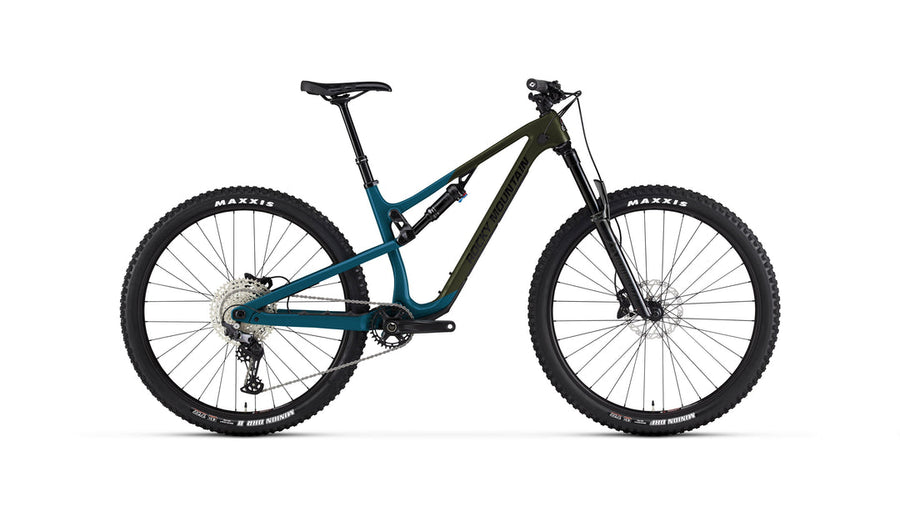

If you’re looking for one bike that does it all, look no further than the Instinct. We’ve designed a bike that’s capable of tackling technical trail riding but still allows you to push the pedals hard on the climbs. We’ve updated the geometry, frame features, and suspension kinematics to make sure you feel confident on the up’s, down’s, and everything in between. Trust your Instinct.
Razor sharp handling and a buttery but efficient suspension setup means satisfying small bump compliance and addictive flickability. Hitting the sweet spot between big hit confidence and surgical levels of precision, it rewards the rider ready to ride more of everything, faster.
Embiggening or shrinking a frame isn’t enough. That’s why the Instinct comes in six distinctly sized frames with specific suspension kinematics and two wheel-size options. It’s the only way to ensure every element of the Instinct’s character gets fully realized for every rider.
Total precision is yours on any trail with our RIDE-9 adjustment system and 2-position rear axle that allows for chainstay length adjustment. It’s everything you need to quickly arrive on the best setup for the trail ahead.
Specification
Frame
SMOOTHWALL™ Carbon. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. 2-Bolt ISCG05 Tabs. RIDE-9™ Adjustable Geometry. 2 Position Axle. 140mm Travel. SMOOTHWALL™ Carbon Rear Triangle
Fork
Marzocchi Z2 Float EVOL Rail 150mm | 44mm Offset
Front travel
150mm
Shock
Fox Float DPS Performance | Sealed Bearing Eyelet | 25x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x52.5mm | Size-Specific tune
Rear travel
140mm
Headset
FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Stem
Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40m
Rocky Mountain Toonie Drop Composite 30.9mm | XS - SM = 125mm | MD = 150mm | LG - XL = 170mm
Saddle
WTB Volt Race 142
Weight
32.3 LBS
Geometry
We have put here the geometry chart forposition 5 of the Ride-9, the neutral position. There are a multitude of other options available to you. From more slack to more steep!
