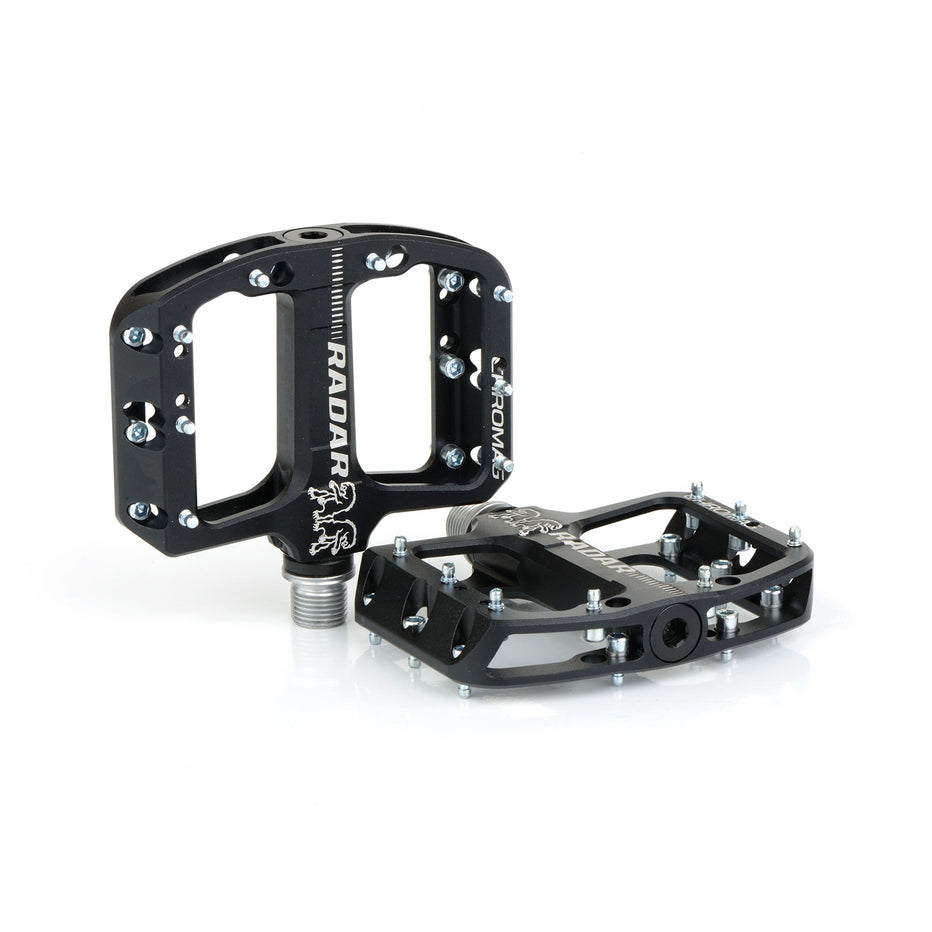

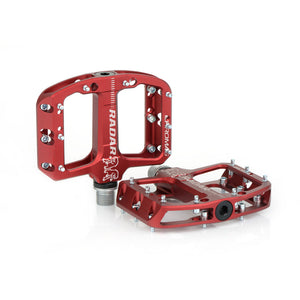

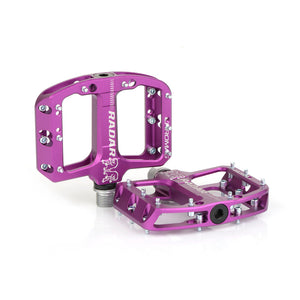

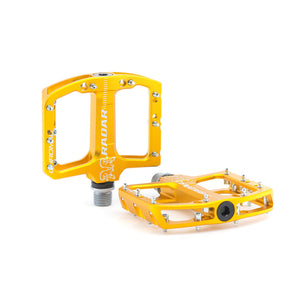

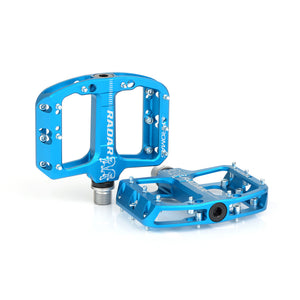

Chromag Radar Pedals
Quality and reliability for those with small feet.
Profile // Concave Design, low 13.0mm at platform center
Material // Alloy, extruded then machined
Platform // 70mm x 93mm
Stance // 46mm
Pins // 16 per pedal, adjustable height
Weight // 300g/pair
CNC Machining is a process in which a piece of raw material or stock is cut into a final desired shape using a computer controlled machine and often several different machine tools. Depending on the operation in question different tools are called, for example ball mills, end mills, thread mills, taps and slitting saws to name a few, all have different uses and come in all manner of shapes and sizes.
Machining produces extremely accurate parts, often to within 0.001" (I know, Canada is mostly metric but the industry predominately uses imperial units), and is renowned for creating a very high-end look with 3D surfacing and clean, strong edges which forging cannot produce.
We designed the G.3 axle system with longevity and serviceability in mind.
The G.3 system uses a high-strength chromoly axle with a double seal, inner bushing, and outer cartridge bearing.
The Pilot & Radar use all the same components, but with a shorter axle. We designate this axle as F.1.
Replaceable Pins
Our pin system is height adjustable via the included washers. They are easily replaceable from the other side of the pedal body, even if damaged.
Some models feature alternate pin locations for customization, or if existing holes are damaged.
Each set comes with spare pins.
