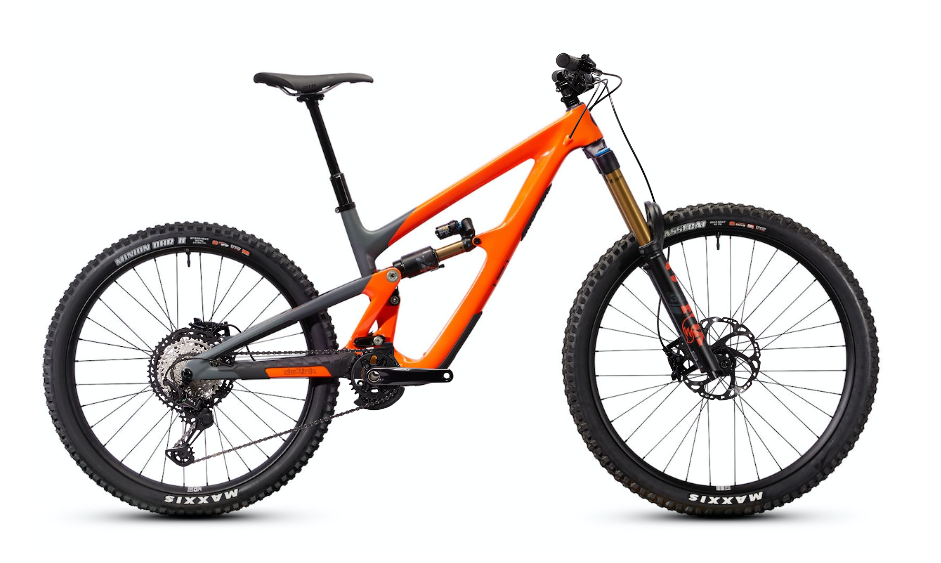

Ibis HD6 XT

Name: Ibis HD6 XT
Brand: Ibis
SKU: 210000165312
Price: 10299.99 CAD
Availability: OutOfStock

Ibis

Color

Size Medium

Medium Large Small

The HD6 is the evolution of one of the most successful enduro bikes in history. Designed with input from our Enduro World Cup team and building upon our award-winning Ripmo and HD lines, the HD6 features increased travel, a completely redesigned suspension layout, and mixed wheels.

GEOMETRY

The 29″ front wheel, bolstered by 180mm of travel, assures stability, whereas the 27.5″ rear wheel allows for additional maneuverability. The 165mm of travel skillfully manages any fallout. With a 64 degree head tube angle (one degree slacker than the current Ripmo), a BB height similar to Mojo HD5, and chainstay length identical to the current Ripmo (despite the 27.5″ rear wheel), the bike maintains an equilibrium between agility and stability.

64°HEAD TUBE ANGLE
76-77.5°SEAT TUBE ANGLE
435mmCHAINSTAYS

COIL COMPATIBLE

Our upper link suspension layout is progressive enough to be sensitive off the top, yet supportive enough for the biggest hits. It is also compatible with all coil shocks, for those longer race stages that can tax air shock performance.

DW-LINK

The suspension layout may be new, but it’s still DW-Link. The inherent efficiency means you don’t need an overdamped shock to climb well. Less shock damping allows the wheels to stay planted on the ground, providing more traction and that hover-bike feel that our frames are known for. The HD6 climbs with a finesse that defies its enduro race pedigree.

TRACTION TUNE

Our custom tuned front and rear suspension feature extra light high speed compression and rebound damping to deliver unparalleled traction. This allows the wheels to flutter through rough terrain like a trophy truck storming through a set of whoops. To learn more about our Traction Tune philosophy,

BUSHINGS

Tired of buying bearings each season? So were we. That’s why we’ve strategically employed bushings where they’re most effective and bearings elsewhere. The IGUS bushings in our lower link are not only lighter and stiffer, they’re virtually maintenance-free. We believe so strongly in them, we back them with free lifetime replacement.

LIGHTWEIGHT PREMIUM CARBON

All our bikes are built from the highest grade materials and optimized for the best strength, weight, stiffness, and ride performance — no matter how much you spend. The HD6 frame is sub 6 lbs without shock and our complete Enduro ready builds weigh as little as 32 lbs.

PROTECT YOUR INVESTMENT

A thick rubber downtube protector deflects debris, while our chainstay protector features thick raised sections to help dampen chain slap noise. And our simple-yet-elegant linkage protectors stop mud and rocks thrown by the tire, keeping your beautiful bike beautiful.

Specification

Fork	Fox Float 38 Factory Series, 180mm, 29”, 110x15
Shock	Fox Float X2 Factory Series with EVOL, 230mm x 65mm
Wheels	Blackbird Send Alloy, 32 Hole, F: Send I 29”, R: Send II 27.5”
Tires	Maxxis Assegai, 29” x 2.5” / Maxxis DHR, 27.5” x 2.4”
Brakes	Shimano XT M8120, 4 piston
Brake Rotors	Shimano SM-RT66, F: 203mm/R: 203mm
Cranks	Shimano XT, M8120, 24mm Spindle, 32T Alloy Ring, 170mm
Bottom Bracket	Shimano XT MT800
Rear Derailleur	Shimano XT M8100 Shadow Plus 12 speed
Shift Levers	Shimano XT M8100 12 speed
Cassette	Shimano XT 10-51
Chain	Shimano XT M8100 12 speed
Chain Guide	MRP AMg SE
Headset	Cane Creek 40 ZS44/ZS56
Grips	Lizard Skin Charger Evo
Handlebar	Ibis 800mm Hi Fi Bar
Stem	Industry Nine A318 S/M: 40mm, L/XL: 50mm
Seatpost	Bike Yoke Revive Dropper S: 125mm, M: 160mm, L: 185mm, XL/XXL: 213mm. Note there is a 250lb rider weight limit on this post.
Saddle	WTB Silverado

Geometry

NOMINAL SIZE	1	2	3	4	5
Seat Tube Length	400	400	406	450	470
Top Tube Length	585	610	630	655	685
Head Tube Length (4mm stack of lower cup not included)	81	86	91	100	115
Chainstay Length	435	435	435	435	435
Seat Tube Angle	76°	76°	76.5°	77°	77.5°
Head Tube Angle	64°	64°	64°	64°	64°
Wheelbase	1202	1228	1256	1288	1328
BB Height (with 2.5WT Maxxis Assegai tires)	345	345	345	345	345
BB Drop	30	30	30	30	30
Stack	621	625	630	638	651
Reach	430	454	480	508	541
Saddle height for seat tube angle	650	700	745	790	830
Standover	725	735	752	765	769
Trail	136	136	136	136	136
Fork Offset	44	44	44	44	44
