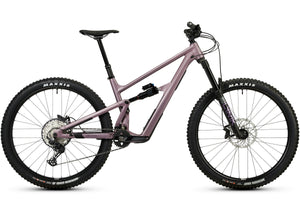

The Ripmo AF legend continues, bringing big-mountain capability to a rugged, aluminum package — blending long-travel confidence with trail-friendly efficiency.
With 160mm front and 150mm rear travel, dw-link suspension, and Flip chips for using a 27.5” or 29” rear wheel, it’s built for steep descents, chunky terrain, and climbs better than it should. Progressive geometry and a durable frame make it ideal for riders who push hard and want a bike that can keep up, lap after lap. Whether you're racing enduro, exploring alpine singletrack, or sending the local lines, the Ripmo AF delivers the same legendary performance as its carbon sibling. The Ripmo AF has all of the same features as the carbon bike; in-frame storage with two bags, coil compatibility, progressive geometry, all at a more approachable price.
Components
| Fork |
RockShox Lyrik, 15QRx110, 160mm |
| Shock |
RockShox Super Deluxe Select 230mm x 60mm |
| Wheels |
Blackbird Send Alloy (Send I front, Send II rear)
S–M, F: Send I 29" R: Send II 27.5"
XM–XL, F: Send I 29" R: Send II 29"
|
| Front Tire |
Maxxis Assegai 29x2.5 EXO+ |
| Rear Tire |
Maxxis DHR II, EXO+
S–M: 27.5" x 2.5", XM–XL: 29" x 2.5"
|
| Brakes |
Shimano Deore, M6120, 4-Piston |
| Rotors (F/R) |
Shimano RT-66 6-Bolt 200F/200R |
| Crankset |
Shimano Deore M6120 24mm spindle |
| Bottom Bracket |
Shimano MT501 |
| Rear Derailleur |
Shimano Deore M6100 SGS |
| Shifter |
Shimano Deore, M6100 |
| Cassette |
Shimano Deore, M6100, 10-51T |
| Chain |
KMC X12 |
| Headset |
Cane Creek 50: ZS44/ZS56 |
| Grips |
Lizard Skins Single Clamp |
| Handlebar |
Ibis Aluminum, 780mm |
| Stem |
Ibis 31.8mm
S–M: 40mm, L–XL: 50mm
|
| Seatpost |
KS Vantage Dropper, 34.9mm
S: 110-140mm, M-XM:140-170mm, L-XL: 180-210mm
|
| Saddle |
WTB Silverado Fusion CrMo 142 |
Geometry
| Nominal Size |
|
SM |
MD |
XM |
LG |
XL |
| Seat Tube |
A |
395 |
400 |
415 |
457 |
477 |
| Top Tube |
B |
578 |
605 |
630 |
655 |
685 |
| Head Tube |
C |
85 |
95 |
110 |
125 |
140 |
| Chainstay 29" |
D |
435 |
435 |
436 |
438 |
440 |
| Chainstay MX |
D |
432 |
432 |
433 |
435 |
437 |
| Seat Tube Angle |
E |
77° |
76.5° |
76.5° |
77° |
77.5° |
| Saddle Height for Seat Tube Angle |
F |
650 |
700 |
745 |
790 |
830 |
| Head Tube Angle |
G |
64.5° |
64.5° |
64.5° |
64.5° |
64.5° |
| Wheelbase |
H |
1195 |
1219 |
1249 |
1286 |
1329 |
| Stack |
I |
616 |
622 |
633 |
643 |
654 |
| Reach |
J |
436 |
456 |
478 |
506 |
540 |
| BB Height* |
|
338 |
341 |
344 |
349 |
350 |
| BB Drop 29" |
K |
36 |
33 |
30 |
27 |
24 |
| Standover |
L |
693 |
734 |
757 |
772 |
784 |
| Recommended Seatpost Drop |
|
140 |
170 |
185 |
213 |
213 |
| Crank Length |
|
165 |
165 |
170 |
170 |
170 |
| Tire Size |
|
2.35-2.5" |
2.35-2.5" |
2.35-2.5" |
2.35-2.5" |
2.35-2.5" |
| Water Bottle Size |
|
1 x 26oz |
1 x 26oz |
1 x 26oz |
1 x 26oz |
1 x 26oz |
