If you’re looking to venture into the alpine or explore a new zone, the Instinct Powerplay will inspire you to go farther and seek out new adventures. The Instinct Powerplay is built for exploration. Versatile geometry, dialed kinematics, and powered by our Dyname 4.0 drive system, you’ll be riding bigger days than ever before.
Shred more of everything
Total trail versatility meets highpower. The Instinct Powerplay shares every element of the original Instinct that makes it our most popular bike ever. Versatile geometry, dialed kinematics, on-the-go adjustability. It’s all right here, and it’s powered by our Dyname 4.0 motor and a removable battery.
The new standard in E-bike power

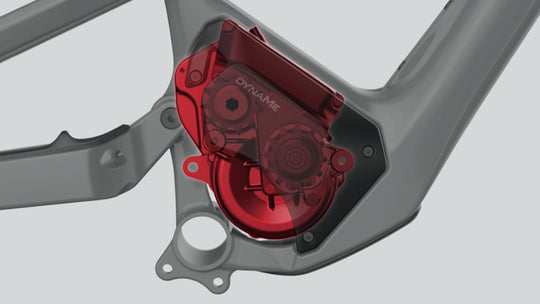

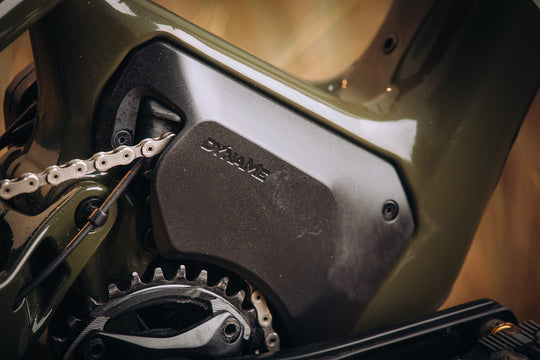

The Dyname 4.0 motor is powerful, delivers big torque, and is long-lasting. That means faster climbs, punchier accelerations, and a longer lasting battery than, well, anyone. Ride further than ever, and drop every other e-bike out there. With the Dyname 4.0 drive, the power is always yours.
Slim and simple E-bike controls
A simple and low-key top-tube display mount keeps you in the know at all times. Battery, assistance level, adjustability. It’s right where you need it, and it’s outta harm’s way.
Specification
Frame
|
SMOOTHWALL™ Carbon | Integrated Display | Mid-High Pivot Smoothlink Suspension System | Press Fit BB | RIDE-4™ Adjustable Geometry + Suspension Rate | 140mm Travel. SMOOTHWALL™ Carbon Rear Triangle
|
Fork
|
Fox 36 E-MTB Float EVOL GRIP Performance 150mm | 44mm Offset
|
Front travel
|
150mm
|
Shock
|
Fox Float X Performance | Sealed Bearing Eyelet | 25x8mm F Hardware | All Sizes = 210x55mm | Size-Specific tune
|
Rear travel
|
140mm
|
Headset
|
FSA Orbit NO.57E | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
|
Stem
|
Rocky Mountain 35 AM | 5° Rise | All Sizes = 40mm
|
Handlebar
|
Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp
|
Grips
|
ODI Elite Pro Lock On
|
Brakes
|
Shimano XT Trail 4 Piston | Metal Pads | F:Shimano RT66 203mm | R:Shimano RT66 203mm
|
Shifters
|
Shimano XT
|
Rear Derailleur
|
Shimano XT 12spd
|
Crankset
|
Race Face Aeffect Cinch 34T | 24mm Spindle | Crank Length: SM - MD = 165mm | LG - XL = 170mm
|
Bottom Bracket
|
Shimano SM-BBMT500
|
Cassette
|
Shimano XT 10-51T
|
Chain
|
Shimano M8100
|
Front Hub
|
Rocky Mountain Sealed Boost 15mm
|
Rear Hub
|
DT Swiss Hybrid 370 Boost 148mm | 18T Star-Ratchet
|
Spoke
|
F : DT Swiss Champion 2.0 | R : DT Swiss Alpine 2.3/2.0
|
Rims
|
Race Face AR 30 | 32H | Tubeless Ready - Tape / Valves Included
|
Tires
|
F: Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready
|
Seatpost
|
Race Face Turbine R (by Fox) Dropper 30.9mm | SM = 125mm | MD = 150mm | LG = 175mm | XL = 200mm
|
Saddle
|
WTB Volt Race 142
|
Drive System
|
Dyname 4.0 Mountain Bike Drive | 250w Nominal Power | 108Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada
|
Battery |
720 Wh Removable Integrated Li-Ion | 100% Charged in 3:55 (4A) / 7:35 (2A) | 80% Charged in 2:55 (4A) / 6:05 (2A)
|
Remote |
Rocky Mountain Micro Remote
|
Display |
Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration
|
Charger |
Rocky Mountain Powerplay FAST Charger | 4A | 48V | Higo Deep Socket Connector | Overtimepack Compatible (Dyname 4)
|
Geometry

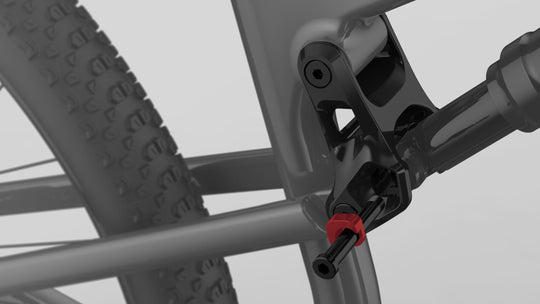

This bike features the RIDE-4 chips that allow four different positions to fine tune your geometry depend on your style and your type of riding. From steeper to slacker. We have put here the geometry chart for position 4 of the RIDE-4, the steeper position. But we know at BOSK that slacker is better so we put the geometry chart for the position 1 of the RIDE-4 who's the more slack. If you have any question about this kind of chips, contact us I'll be a pleasure to help you with that!
|
Small Steep |
Medium Steep |
Large Steep |
X-Large Steep |
Wheels (inch) |
29 |
29 |
29 |
29 |
Top tubes horizontal (mm)
|
583 |
608 |
636 |
669 |
Head tube angle (deg)
|
64.95 |
64.95
|
64.95
|
64.95
|
Head tube lenght (mm)
|
100 |
100 |
110 |
125 |
Seat tube angle (deg) |
76.95 |
76.95
|
76.95
|
76.95
|
Seat tube lenght (mm) |
380 |
420 |
445 |
480 |
Rear center (mm) |
436 |
436
|
436
|
436
|
Bottom bracket drop (mm) |
32 |
32 |
32 |
32 |
Reach (mm) |
441 |
466 |
491 |
520 |
Stack (mm) |
618 |
618 |
626 |
639 |
Standover height (mm) |
823 |
823 |
823 |
823 |
Wheelbase (mm) |
1199 |
1224 |
1253 |
1290 |
|
Small Slacker |
Medium Slacker |
Large Slacker |
X-Large Slacker |
Wheels (inch) |
29 |
29 |
29 |
29 |
Top tubes horizontal (mm)
|
585 |
610 |
638 |
671 |
Head tube angle (deg)
|
64.2 |
64.2
|
64.2
|
64.2
|
Head tube lenght (mm)
|
100 |
100 |
110 |
125 |
Seat tube angle (deg) |
76.2 |
76.2
|
76.2
|
76.2
|
Seat tube lenght (mm) |
380 |
420 |
445 |
480 |
Rear center (mm) |
439 |
439
|
439
|
439
|
Bottom bracket drop (mm) |
42 |
42
|
42
|
42
|
Reach (mm) |
432 |
457 |
482 |
512 |
Stack (mm) |
624 |
624 |
632 |
646 |
Standover height (mm) |
819 |
818 |
817 |
818 |
Wheelbase (mm) |
1201 |
1226 |
1256 |
1292 |
