The open (gravel) road. When nothing stands between you and the horizon. It doesn’t matter if you're chasing mountains or vast open plains, there’s something hypnotic about the call of gravel less traveled. Make every ride an adventure.
Durability first
Tested to meet mountain bike frame-testing standards. Perfect blend of fast and light. From gravel to trails to singletrack.
Soak it up
Increased vertical compliance on carbon models with our unique seat tube design for increased comfort.

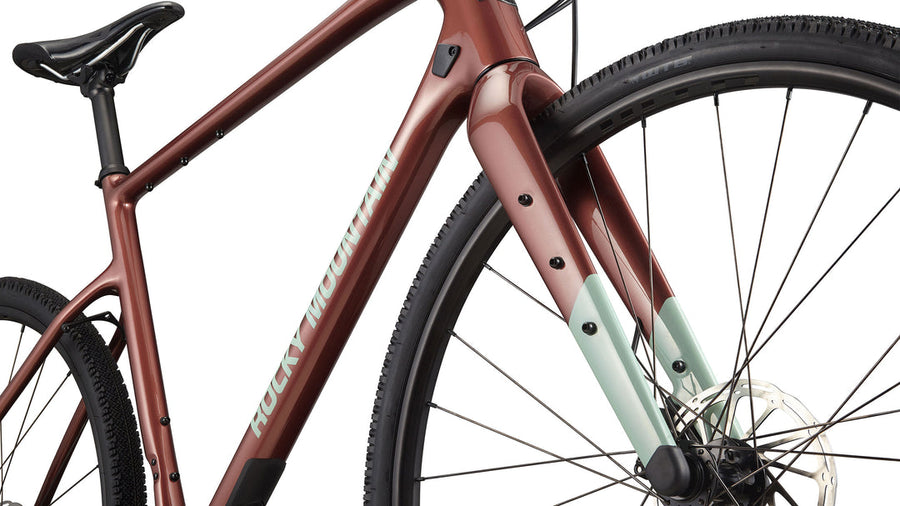

All the mounts
Mount as many bottles, bags or accessories you need with 12 mounting points on the frame, and 8 on the fork.
Massive clearance
Easily fit 700 x 40c tires including fenders, or 650b x 2.2 tires including fenders.
Specification
| Frame |
Rocky Mountain Smoothwall Carbon | BB386 | Zero Stack Tapered Headtube | Fully Guided Internal Cable Routing | Dropper Post Compatible | 142mm Dropouts | SRAM UDH Compatible Rear Triangle
BB Standard: BB86/BB92, Press Fit
Hanger Standard: UDH
Color: Red / Blue
|
| Fork |
Rocky Mountain Carbon Gravel | Full Carbon Steerer |100 x 12mm Axle |3 Pack & Fender Mounts
|
| Bottom Bracket |
SRAM BB386 DUB Wide
|
| Headset |
FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
|
| Stem |
Rocky Mountain 31.8 XC | 7° Rise | XS = 60mm | SM = 70mm | MD = 80mm |LG = 90mm | XL = 100mm
|

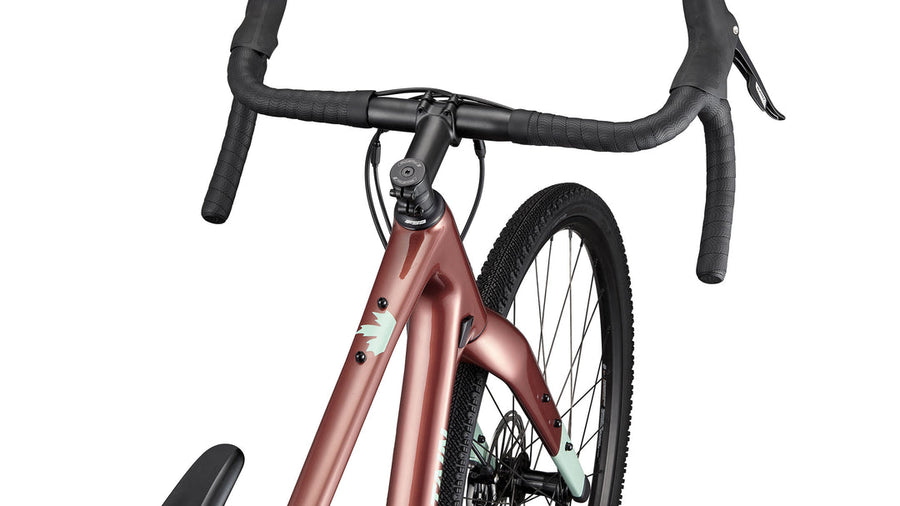

| Handlebar |
Rocky Mountain | Reach 70mm | Drop 120mm | Flare 18° | Width: 420mm XS | 440mm SM-MD | 460mm LG-XL
|
| Saddle |
WTB Silverado Race 142
|
| Seatpost |
Rocky Mountain SL 27.2mm
|
| Grips |
Rocky Mountain Gel Bar Tape
|
| Rear Derailleur |
SRAM Rival 1
|
| Crank |
SRAM Rival 1 Wide | 42T | DUB Spindle | Crankarm Length: XS-SM = 170mm | MD = 172.5mm | LG-XL = 175mm
|
| Shifters |
SRAM Rival 1x11
|
| Cassette |
SRAM XG-1150 10-42T
|
| Chain |
SRAM PC1110 11spd
|
| Brakes |
SRAM Rival | F:SRAM Centerline 160mm | R:SRAM Centerline 160mm
|
| Rims |
WTB ST Light i23 TCS 2.0 Tubeless | 28H | Tubeless Ready - Tape / Valves Incl
|
| Spokes |
DT Swiss Competition 2.0/1.8/2.0
|
| Front Hub |
Rocky Mountain Sealed 12mm
|
| Rear Hub |
Rocky Mountain 12x142mm
|
| Tires |
F: WTB Venture TCS Light Fast Rolling 700 x 40c // R: WTB Venture TCS Light Fast Rolling 700 x 40c
|
Geometry
|
XS |
SM
|
MED
|
L
|
| Top Tube Horizontal (mm) |
520 |
540 |
560 |
580 |
605 |
| Head Tube Angle (deg) |
70 |
70.5 |
71 |
71.5 |
71.5 |
| Head Tube Length (mm) |
100 |
130 |
150 |
185 |
210 |
| Seat Tube Angle (deg) |
75 |
74.5 |
74 |
73.5 |
73 |
| Seat Tube Length (mm) |
414 |
452 |
490 |
528 |
566 |
| Rear Centre (mm) |
425 |
425 |
425 |
425 |
425 |
| Bottom Bracket Drop (mm) |
78 |
77 |
75 |
75 |
75 |
| Reach (mm) |
375.8 |
382.66 |
391.9 |
395.9 |
407.7 |
| Stack (mm) |
538.2 |
567.4 |
586.2 |
621.4 |
645.1 |
| Standover Height (mm) |
754 |
787 |
814 |
850 |
877 |
| Wheelbase (mm) |
1021 |
1034 |
1045 |
1056 |
1076 |
