120mm / 120mm
BUILT TO FLY

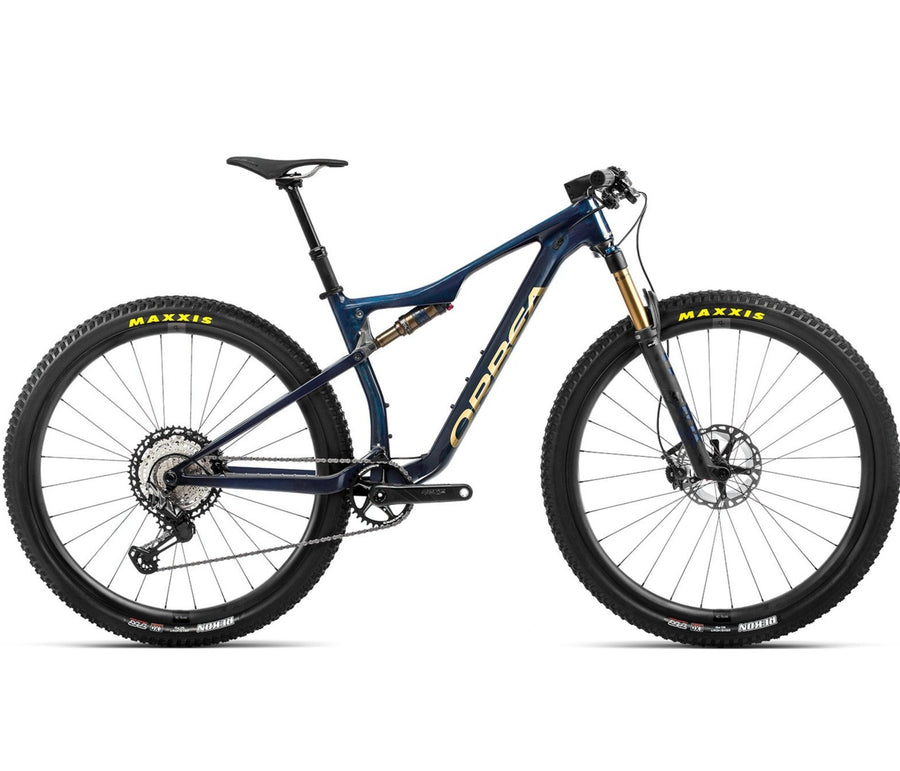

Take control. Don't accept compromises. Oiz isn't down-country or trail; this is a 120mm XC race machine that looks as good as it rides. Modern geometry and clever suspension, designed from the start around 120mm, bring extra fun to every ride without compromising weight or efficiency. Simply put, Oiz is the fastest XC bike to leave our factory in over 180 years.
YOU CAN'T BEAT SIMPLE
Removing anything which is superfluous and only adding features which enhance the ride means that at 1740g Oiz is one of the lightest XC frames out there. Light weight is key for a fast XC bike and relentlessly pursuing the simplest solutions means Oiz doesn’t need compromise anywhere else to achieve this.
CONTROL NOT COMPROMISE
Oiz is designed around 120mm of travel right from the start, allowing us optimise the geometry and kinematics, removing many of the traditional compromises of longer travel XC bikes.
FASTER AND MORE FUN ON THE DESCENTS AND LIGHTER AND MORE EFFICIENT ON THE CLIMBS, OIZ IS A NO COMPROMISE XC MACHINE BUT THAT DOESN’T MEAN IT ISN’T FUN.
SUSPENSION ADVANCED DYNAMICS
Orbea’s Advanced Dynamics software is unique in the industry and is at the heart of every Orbea suspension bike. Our proprietry software allows us to simulate how a bike will perform under different conditions, even simulating different trail conditions and tyre pressures! None of this would have been possible without an unusual level of cooperation with our suspension partners. Of couse this is just one part of the design process, however it means when we start testing prototypes we are able to concentrate on fine tuning and ironing out tiny details. Starting from a great first design allows us to get closer to a perfect bike.
|FRAME||Orbea Oiz Carbon OMX, Fiberlink, Boost, PF BB, UFO2, I-line shock|
|SHOCK||Fox i-line DPS Factory 120mm Remote Push-Unlock Evol Kashima custom tune 190x45mm|
|FORK||Fox 34 Float SC Factory 120 FIT4 Remote-Adj Push-Unlock QR15x110|
|HEADSET||Acros Alloy 1-1/8 - 1-1/2" Integrated|
|CRANKSET||Race Face Next-SL 34t|
|SHIFTERS||Shimano XT M8100 I-Spec EV|
|CASSETTE||Shimano CS-M8100 10-51t 12-Speed|
|REAR DERAILLEUR||Shimano XTR M9100 SGS Shadow Plus|
|CHAINGUIDE||Orbea OC chainguide|
|HANDLEBAR||OC Mountain Performance MP10 Carbon, Width 760|
|STEM||OC Mountain Performance MP20, -8º|
|BRAKES||Shimano XT M8100 Hydraulic Disc|
|WHEELS||OC XC TEAM, 30 mm internal width, Tubeless ready, 28H|
|TYRES||Maxxis Rekon Race 2.35" 120 TPI Exo TLR|
|SEATPOST||OC Mountain Control MC20, 31.6mm, Dropper|
|SEATPOST LEVER||Included in OC Squidlock 3-position|
|SADDLE||Selle Italia SLR Boost Fill Titanium Rail 316 Ø7 mm|
|REMOTE LOCKOUT||OC Squidlock MP20 Remote, Dropper, Suspension 3 Pos|
|1 - SEAT TUBE (C-T)||405||432||470||520||405||432||470||520|
|2 - TOP TUBE (EFF)||564||593||617||641||567||596||619||643|
|3 - HEAD TUBE||90||95||105||120||90||95||105||120|
|4 - CHAINSTAY||430||430||430||430||430||430||430||430|
|5 - BB HEIGHT||327||327||327||327||334||334||334||334|
|6 - BB DROP||47||47||47||47||40||40||40||40|
|7 - WHEELBASE||1089||1119||1143||1168||1096||1126||1150||1176|
|8 - HEAD ANGLE||69º||69º||69º||69º||68º||68º||68º||68º|
