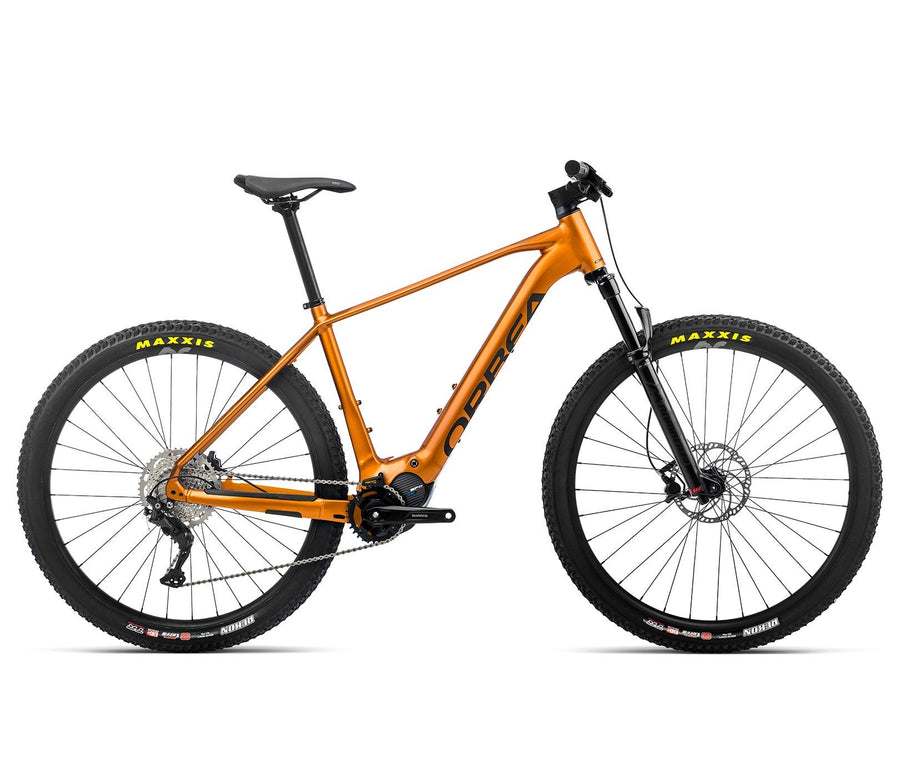

Urrun is ready for life, family and adventure. Our RS Concept with Rise, this is a new riding experience that enhances the joy of biking with smooth assistance that feels as natural and alive as your own body. The lighter weight EP8 RS motor, a 120mm fork and trail ready components mean that Urrun is ready to explore those distant horizons.
INNOVATE AND INTEGRATE
Urrun brings with it many cutting edge technologies aimed at simplifying the design and removing unnecessary weight. As beautiful to look at as it is to ride, Urrun hardly even looks like an e-bike.
A BETTER BATTERY
Urrun is all about long rides and big adventures. The highly optimised battery offer cutting edge energy density, allowing us to fit more riding into a smaller space, improving aesthetics and reducing weight. Urrun has enough assistance for around 3500m or up to 8 hours of riding.
NATURAL POWER
Urrun uses the same EP8 RS motor as the Rise, developed in partnership with Shimano, to give the most natural-feeling riding experience. Lightweight, quiet, and responsive but above all efficient, Urrun feels as natural and alive as your own body.
NEXT GENERATION ALUMINIUM FRAMES
Next generation aluminium means hydroformed frames, butted tubes and polished welds. It looks great of course, matching the aesthetics of a carbon frame, but more important are the performance benefits and fatigue resistance. We are so confident in our frames that every one comes with a lifetime warranty.
Specification
FRAME
Orbea Urrun, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible
FORK
Marzocchi Bomber Z2 120 QR15x110 E-Bike Optimized
HEADSET
FSA 1-1/2" Integrated Aluminium Cup
CHAINRING
Alloy EP8 32t
CRANK
Shimano Steps EM600
SHIFTERS
Shimano Deore M4100
CASSETTE
Shimano CS-M4100 11-46t 10-Speed
REAR DERAILLEUR
Shimano Deore M5120 SGS Shadow Plus
CHAIN
KMC e10 Turbo Silver
CHAINGUIDE
Orbea Chainguide
HANDLEBAR
Alloy, 35mm, Rise 20mm, 780mm
STEM
Alloy forged, 35mm interface, -6º, ICR
BRAKES
Magura MT30 Hydraulic Disc Easy Route Connection
BRAKES CONFIGURATION
WHEELS
Alloy, Tubeless, 29", 29c, 32H
TYRES
Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR
SEATPOST
Alloy, 31.6mm, Setback 0
SADDLE
Selle Royal Vivo 145x269mm
MOTOR
Shimano EP8-RS
BATTERY
Orbea Internal 540Wh (Optional 252Wh Range Extender)
RANGE EXTENDER
N/A
DISPLAY
Shimano SC-E5003
CHARGER
Orbea Smart Charger (42V-4A)
Geometry
S
M
L
XL
1 - SEAT TUBE (C-T)
400
453
483
533
2 - TOP TUBE (EFF)
565
579
608
645
3 - HEAD TUBE
110
115
132
153
4 - CHAINSTAY
445
445
445
445
5 - BB HEIGHT
322
320
320
320
6 - BB DROP
54
56
56
56
7 - WHEELBASE
1143
1150
1173
1220
8 - HEAD ANGLE
65,5º
66º
66º
66º
9 - SEAT ANGLE
74,8º
74,6º
74,6º
74,5º
10 - STANDOVER
798
826
848
882
11 - REACH
395
405
440
460
12 - STACK
631
628
647
666
13 - FORK LENGTH
533,5
533,5
533,5
533,5
