E-ENDURO
Light assist. Burly capability.

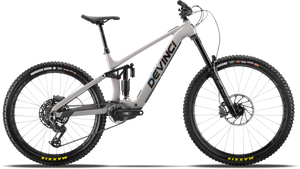

Big bike energy, now electrified. Tame the burly without holding back. The E-Spartan Lite is built to turn turbulence into confidence. Made in Canada and powered by German precision, its chassis hides Bosch’s Performance Line SX drive system and a 400Wh battery. With 165mm of rear travel and 170mm up front, a don’t-hold-back attitude, and Devinci’s lifetime warranty, the E-Spartan Lite is built to perform where it matters most…on burly territory.
BOSCH PERFORMANCE LINE SX
|
MIXED WHEELS
|
|
German engineering in a Canadian-made frame. Weighing at 4.4 lbs (2.0 kg), Bosch’s lightest drive unit yet, the Performance Line SX delivers 55 to 60 Nm of torque and has a maximum power output of 600 watts. To achieve its light weight, the motor is built around a magnesium housing. The Performance Line SX utilizes Bosch’s smart system, making it compatible with their app eBike Flow and, therefore, fully tunable for the rider’s preferences.
|
The E-Spartan Lite was designed from the ground up to get the most out of a mixed-wheel setup. The best of both worlds: the maneuverability of a 27.5'' rear wheel combined with the added traction and rollover speed of a 29'' front wheel.
|
UP TO 67 KM ON A SINGLE CHARGE
RANGE
A full charge will get you approximately 2 hours of riding, 1000 meters of climbing, and an average range of 40 km. Using mainly the ECO mode, the battery will deliver up to 67 km of range. Using primarily the TURBO mode, the system will provide a range of approximately 28 kilometers. The average speed, the assist mode, the weather, the wind, the rider's weight, and the frequency of stops are all factors that play a role in the energy consumption of the battery. For a more accurate estimate of the available range, use the Bosch Range Assistant.
MODES
The Bosch system of the E-Spartan Lite is programmed with the following assist modes: ECO, TOUR+, eMTB, and TURBO.
ECO: Low level support with maximum efficiency for the greatest range.
TOUR+: Smooth incremental support for energy-saving riding and a natural riding experience for longer rides.
eMTB: Providing targeted support for eMTB riding and delivering power exactly when it's needed for an optimal ride experience.
TURBO: Maximum power support even at high cadences on steep climbs.
Specification
| Fork |
RockShox ZEB Select 29 | DB | 170mm | 15x110 | 44 Offset
Travel: 170mm
Spring Type: Air |
| Shock |
RockShox Vivid Select+ | 205x65T |
| Bottom Bracket |
Bosch, Press-fit |
| Headset |
FSA Orbit | 1.5 | Zero Stack |
| Stem |
V2 Pro | B:35mm | L:40mm | 0° |
| Handlebar |
V2 Pro | B:35mm | R:30mm | W:800mm |
| Saddle |
SDG BELAIR Max eMTB |
| Seatpost |
TranzX Dropper | 31.6mm
Type: Dropper |
| Grips |
Devinci | w/lock-on |
| Rear Derailleur |
SRAM Eagle 90 | 12s |
| Crank |
SRAM XX Eagle | 34T | Bosch eMTB |
| Shifters |
SRAM Eagle 90 | 12s |
| Cassette |
SRAM XS1270 T-TYPE | 12s | 10-52T |
| Chain |
SRAM Eagle 70 |
| Brakes |
Front: SRAM Maven Bronze
Rear: SRAM Maven Bronze
Type: SRAM Maven Bronze Hydraulic Disc |
| Rims |
Front: RaceFace Aeffect R30 | 29 | Boost110x15 | 30mm inner
Rear: RaceFace Aeffect R30 | 27.5 | B148x12 HG | 30mm inner | eMTB |
| Tires |
Front: Maxxis Assegai | 29x2.5 | 3C | DD | TR | MaxxGrip
Rear: Maxxis Minion DHR II | 27.5x2.5 | 3C | DD | TR | MaxxTerra |
| Motor |
Bosch Performance Line SX | 55Nm | 600W |
| Battery |
Bosch CompactTube 400 | 36V | 400Wh |
| Display |
BOSCH System Controller BRC3100 |
Geometry
| Size |
MD Low |
LG Low |
XL Low |
| Wheels |
27.5″ / 29″ |
27.5″ / 29″ |
27.5″ / 29″ |
| Stack |
618 |
627 |
636 |
| Reach |
460 |
480 |
500 |
| Stack/Reach Ratio |
1.34 |
1.31 |
1.27 |
| Top Tube Length |
594 |
618 |
641 |
| Seat Tube Length |
420 |
460 |
495 |
| Seat Tube Angle |
77.7° |
77.5° |
77.4° |
| Head Tube Length |
105 |
115 |
125 |
| Head Tube Angle |
63.5° |
63.5° |
63.5° |
| BB Drop |
— |
— |
— |
| BB Height |
355 |
355 |
355 |
| Chainstay Length |
436 |
436 |
436 |
| Wheelbase |
1,245 |
1,269 |
1,294 |
| Standover Height |
745 |
745 |
745 |
