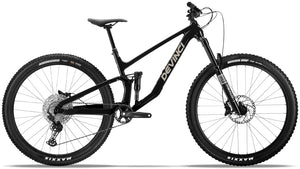

Devinci Troy ST A Deore

Name: Devinci Troy ST A Deore
Brand: Devinci
SKU: 883385276990
Price: 3699.99 CAD
Availability: InStock

Devinci

$3,699.99

Color Black Dust

Black Dust

Size Small (27.5)

Small (27.5) Medium (29) Large (29)

Lightning with a bottle cage.

The new Troy ST is the black belt in the Troy family. Insanely agile, the 130mm travel Split Pivot frame has updated geometry with size-specific chainstays that will have you riding stuff you thought you wouldn’t, fast. Its integrated downtube storage and go get ‘em attitude will lure you into all day rides on “once a year” trails, weekly. Full 29 in M-XL sizes and full 27.5 in XS-S, the ST isn’t trying to be anything it’s not. It’s made in Canada, guaranteed for life and ready to rumble. This bike is proof that with travel, sometimes less is more.

TAILORED WHEEL SIZES

The XS and S sizes feature 27.5-inch front and rear wheels to accommodate smaller riders, while the M, L, and XL sizes of the Troy ST are equipped with 29-inch wheels, creating a fully balanced feel from the ground up.

Small but mighty.

The Troy ST! Small but mighty. With 130mm - 140mm of travel, it’s the sweet spot for just about anything. Agile, lively, and responsive, the ST is the black belt in the Troy family. From big missions in the alpine to epic singletracks or more casual family rides, it’s ready to answer the call.

Specification

Frame	Aluminum Optimum G04 130mm BB Standard: BSA, 68mm, Threaded Color: Black Dust Gloss
Fork	RockShox Psylo Silver RC \| 140mm \| 44Offset \| 1 Token Travel: 140mm
Shock	RockShox Deluxe Select 185x47.5 Trunnion Travel: 130mm
Bottom Bracket	Shimano BB MT501 \| BSA \| 68/73mm
Headset	FSA Orbit \| 1.5 \| Zero Stack
Stem	V2 Pro \| B:35mm \| L:50mm \| 0°
Handlebar	V2 Pro \| B:35mm \| R:30mm \| W:800mm
Saddle	Devinci
Seatpost	TranzX Dropper \| 31.6mm Type: Dropper
Grips	Devinci \| w/lock-on
Rear Derailleur	Shimano Deore M6100 \| 12s
Crank	Shimano MT5121 \| 32T \| 170mm
Shifters	Shimano Deore M6100 \| 12s \| I-spec EV
Cassette	Shimano Deore M6100 \| 12s \| 10-51T \| Microspline
Chain	KMC X12 \| 12s
Brakes	Front: Shimano Deore M4100/MT410 \| 2 Pistons Rear: Shimano Deore M4100/MT410 \| 2 Pistons Type: Shimano Deore Hydraulic Disc
Rims	Front: V2 Comp 29 \| 29mm inner \| TR Rear: V2 Comp 29 \| 29mm inner \| TR
Spokes	Sapim Stainless 14G w/Nylok
Front Hub	Formula DC-611 \| Sealed \| 6bolts \| TA 15x110mm
Rear Hub	Formula MST-148 \| Sealed \| 6bolts \| TA12x148mm \| Microspline
Tires	Front: Maxxis Minion DHF \| 29x2.5WT \| 3C \| Exo \| TR \| MaxTerra Rear: Maxxis Aggressor \| 29x2.5 \| EXO \| TR \| Dual Compound

Geometry

Size	XS High	XS Low	SM High	SM Low	MD High	MD Low	LG High	LG Low	XL High	XL Low
Wheels	27.5″	27.5″″	27.5″″	27.5″	29″	29″	29″	29″	29″	29″
Stack	565	571	565	571	608	615	617	623	626	632
Reach	431	423	453	445	477	468	496	488	516	508
Stack/Reach Ratio	1.31	1.35	1.25	1.28	1.28	1.31	1.24	1.28	1.21	1.24
Top Tube Length	535	537	561	563	591	593	628	630	653	654
Seat Tube Length	370	370	400	400	420	420	450	450	470	470
Seat Tube Angle	79.6	78.8	79.2	78.4	79.4	78.6	78.0	77.3	77.8	77.1
Head Tube Length	95	95	95	95	105	105	115	115	125	125
Head Tube Angle	65.7	65.0	65.7	65.0	65.7	65.0	65.7	65.0	65.7	65.0
BB Drop	24	34	24	34	26	38	26	38	26	38
BB Height	350	340	350	340	348	336	348	336	348	336
Front Center	725	725	747	747	789	789	813	814	837	837
Chainstay Length	432	435	432	435	432	435	442	445	442	445
Wheelbase	1,156	1,158	1,178	1,180	1,220	1,221	1,254	1,256	1,278	1,280
Rake	45	46	45	46	45	46	45	47	45	47

Made in Canada

We are proud to say that a Devinci bike comes from here. Discover the process behind each of our made-in-Canada bikes.

Durability is one of the core values that every Devinci is built on. That’s why every Devinci, without exception, comes with a lifetime warranty. It’s our commitment to the bikes we make, to the place we make them and to everyone who rides a Devinci, for life. So, if you were looking forward to your “next” Devinci bike, we’re not sorry to say: this one will last.
